• 2020 DIAMOND

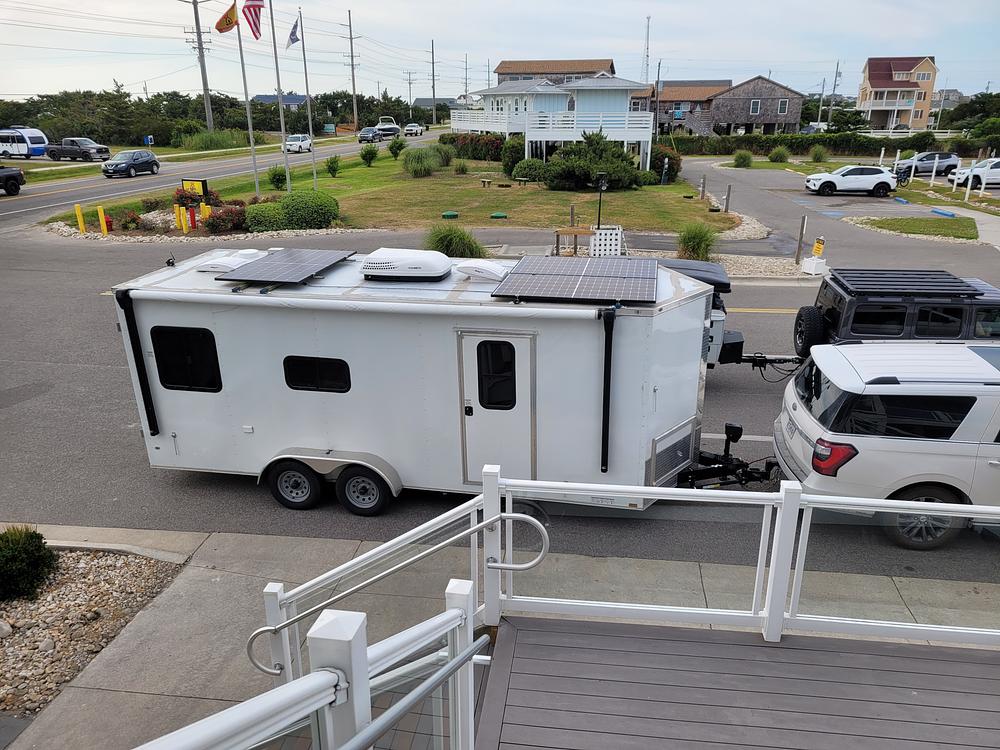

Custom Travel Trailer 7x20x7

Also listed on Facebook Marketplace

https://www.facebook.com/share/19TQj1DFr5/?mibextid=wwXIfr

Custom travel trailer built to last! All interior furniture and cabinetry built with sturdy 1 12 x 1 12 (Actual) framing rather than the flimsy 34 manufactured framing. 4500 lbs Dry weight.

Including all the things needed to hit the road, 25ft 30 amp cord, 50 amp and 15 amp adaptors, 2x25ft Drinking water hose, water pressure regulator, 25 ft Rhino 3" sewer hose. Leveling blocks. Some pots and pans, etc.

Kitchen
Sink counter 65" long
Opposite prep counter 48" long
Butcher block counter top
9 deep sink
High clearance faucet with pulldown sprayer
Bosch 2 12 Gallon Water heater
Tons of deep soft close drawer storage

Sleeps 4-6
Standard queen size mattress in the rear
Standard twin size mattresses for bunkbeds
72x44 Dinette converts to bed with 4in thick cushions

Can include for additional cost: Weigh Safe rue Tow Weight Distribution Hitch Max Tongue weight 1500lbs Max Trailer weight 15000Lbs. ($1200 value) Gives you Tongue weight every time. One of the best distribution hitches on the market.

Trailer Structure
Two 3500lbs Lippert Easy Lube Drop Leaf Axles (Brand New)
ST205 15 8ply tires
Dry weight 4500 lbs
Rear Barn Doors
18x10 Solera Power Awning
Power Tongue Jack
18ft Outdoor LED Awning Light
2 5/16 coupler
Tubular steel frame structure on all sides.
75 interior height
2 insulation on ceiling and floor
1 in insulation in walls

Electrical
30 Amp Shore power
12v DC system and 110v AC system

Massive Victron Solar system with powerful Lithium battery!!!
3000 Watt Victron inverter, charger, assist
1096 Watts of Solar panels on roof
24v 280 Amp Hour LifePo4 Battery (6720 Watts of power)
DC-DC Charger (Use your car to charge the LifePo4 battery while driving)
This system runs the Fridge indefinitely (we have solid ice cream on the hottest of days from the freezer without being plugged in.), runs the water heater for hours, runs the Roof AC for 2-4 hours depending on how sunny it is. Run the microwave off the solar also!

Storage
Full storage under the Queen bed and bottom twin bed. Both have gas struts to make lifting the bed easier and to hold it up while accessing storage under the bed.
36 wide hanging closet with shoe caddy below
Soft close drawers
Gas struts on Vertical opening cabinets
Magnetic close on all cabinet doors.

Plumbing
City Water Hookup
12v Water pump
Expansion Tank ( Makes the water flow smoothing no matter what)
2 12 gallon Bosch Water Heater
6 Gallon Fresh tank
6 Gallon Gray tank(could easily increase water storage by adding tanks under the queen bed)
Thetford Cassette Toilet

HVAC
Dometic Penguin 2 Low Profile 13500 Air conditioner.
Softstart installed on Air conditioner that allows you to run the AC on a 2500 Watt generator or 15 amp outlet (standard house plug)

Connectivity
Has a Pepwave 5G and WIfi 6 router you can put two cell sim cards in to have a hotspot.
Pepwave router is connected to a long range antenna that gets you cell reception where others dont.

Wireless Backup camera. Not just for backing up, but you can see behind you as you drive.

Clear Title

Cash only.

Pickups preferred, but may deliver depending on distance. Delivery requires full prior payment.
